Main line coach wiring

Post by John Ashworth »

As part of our drive to get the lights working in all our coaches, we've given some attention to our main line sleeper coach. We had feared that much of the internal wiring had been cut during conversion work, but today we connected a 24v supply to the distribution board and all the lights came on - corridor, compartments, toilet and shower. We hope to be able to get all the systems on this coach working eventually.

Any electricians out there who'd like to volunteer to help?!
Attachments

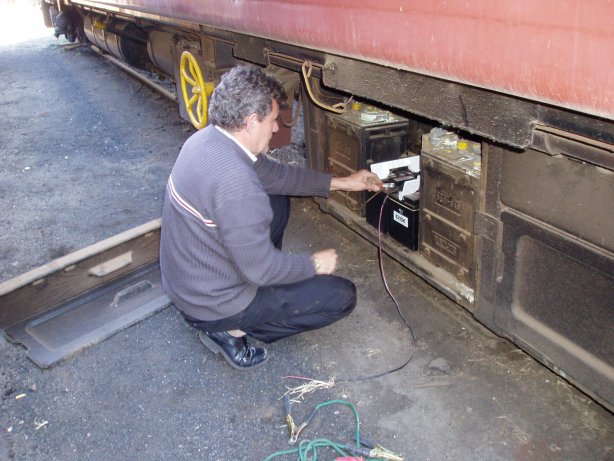

Steve S examining the external batteries<br /><br />Photo by John Ashworth 08/07/07
Steve S examining the external batteries

Photo by John Ashworth 08/07/07
main line wiring 04s.jpg (79.02 KiB) Viewed 1800 times

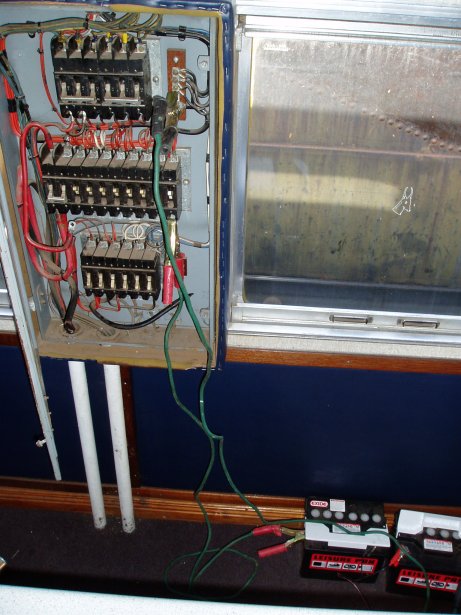

Distribution board with 24v supply from batteries<br /><br />Photo by John Ashworth 08/07/07
Distribution board with 24v supply from batteries

Photo by John Ashworth 08/07/07
main line wiring 02s.jpg (58.89 KiB) Viewed 1799 times

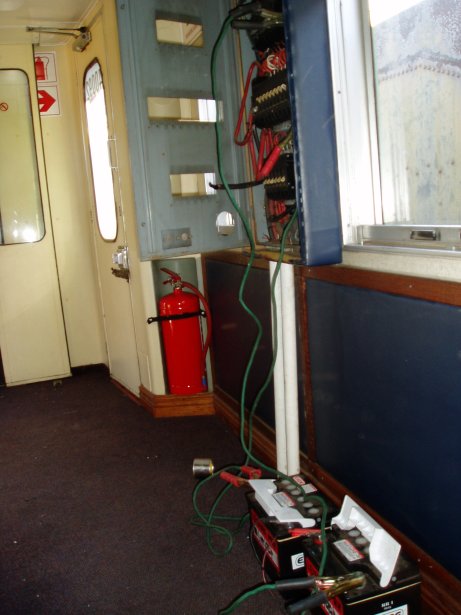

Distribution board with 24v supply from batteries<br /><br />Photo by John Ashworth 08/07/07
Distribution board with 24v supply from batteries

Photo by John Ashworth 08/07/07
main line wiring 01s.jpg (79.02 KiB) Viewed 1799 times
Top
User avatar
Mike Haslam
Site Admin
Posts: 457
Joined: 25 Jan 2007, 11:18
Location: Vermont, USA

main line coach

Post by Mike Haslam »

John. That is good news. So simple and it works!~!!!

Now if we can get the 24V generator working and some working batteries....
