Coach Wiring 3
-
John Ashworth
- Site Admin
- Posts: 23606
- Joined: 24 Jan 2007, 14:38
- Location: Nairobi, Kenya
- Contact:
Playing with transformers on the main line sleeper coach. Its lights work on 24v, so we need to transform the 230v supply.
- Attachments
-

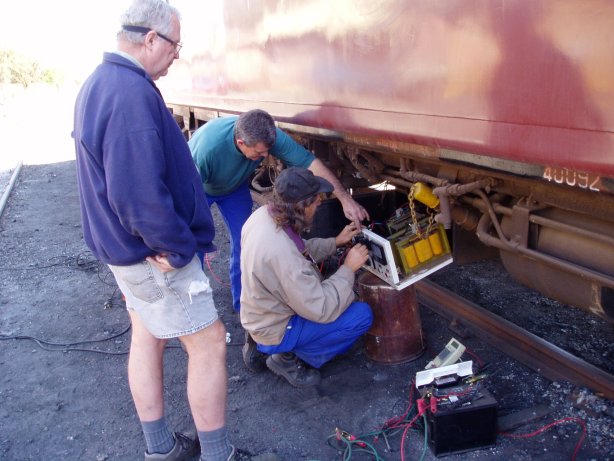

- Tom, Steve and Mike remove a defective transformer
Photo by John Ashworth 18/08/07 - p1010004s.jpg (72.2 KiB) Viewed 1676 times
-
- Mike and Steve fiddle
Photo by John Ashworth 18/08/07 - p1010006s.jpg (78.45 KiB) Viewed 1675 times
-
- Mike tests a replacement transformer while Steve and Tom look on
Photo by John Ashworth 18/08/07 - p1010007s.jpg (85.13 KiB) Viewed 1674 times
-

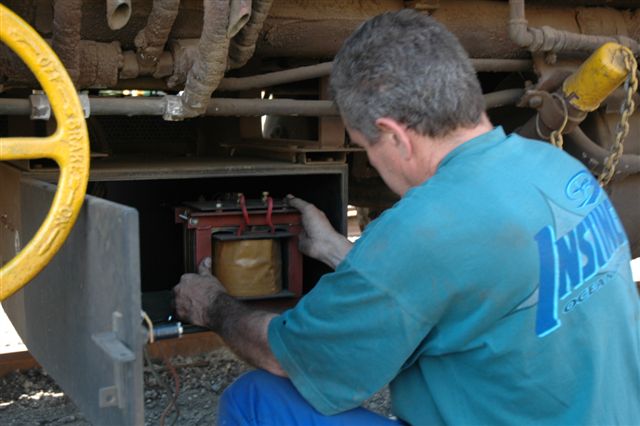

- Steve Smith at work on the mainline coach, figuring out if the transformer should stay or go!
Photo by Nathan Berelowitz 18/08/07 - electrification of FOTR coaches 18aug2007 001.jpg (50.8 KiB) Viewed 1675 times
-
John Ashworth
- Site Admin
- Posts: 23606
- Joined: 24 Jan 2007, 14:38
- Location: Nairobi, Kenya
- Contact:
We were able to bolt the brackets onto the suburban coaches, but the main line sleeper needed welding
- Attachments
-
- Tom looks on while Steve welds the other end
Photo by John Ashworth 18/08/07 - p1010015s.jpg (91.18 KiB) Viewed 1670 times
-

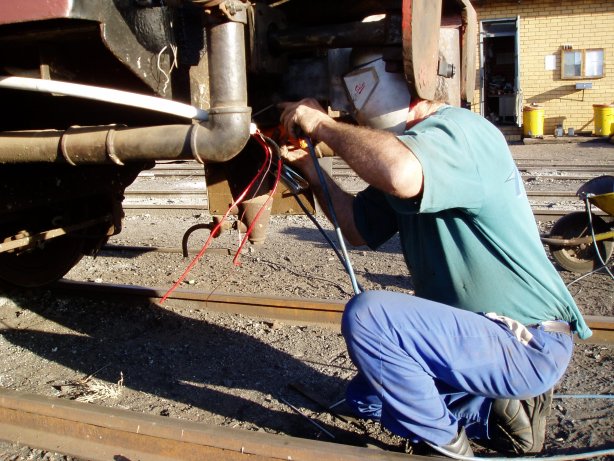

- Steve welding one end of the coach
Photo by John Ashworth 18/08/07 - p1010012s.jpg (99.57 KiB) Viewed 1670 times
