The right tool...

Post by John Ashworth »

For years we've been battling whenever we've had to remove heavy objects such as vacuum cylinders or pistons from our coaches and locomotives. Five or six blokes crouched in uncomfortable positions balancing awkardly-shaped chunks of heavy metal on long pry bars is not only hard work but could scarcely be called a safe working practice.

Why did it take us so long to purchase a lifting tool? These photos show its maiden outing on Saturday 29th September 2007 as we remove a vacuum cylinder from coach 5919 to replace the roller ring. John, Steve and Tom are working while Nathan hangs around taking photos. Oh alright, he did join in and help with the heavy bits...
Attachments

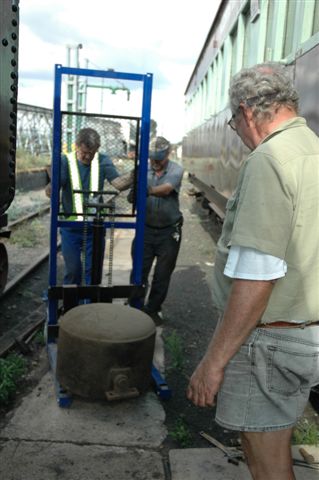

It's off!<br /><br />Photo by Nathan Berelowitz 29/09/07
It's off!

Photo by Nathan Berelowitz 29/09/07
family and trainstuffsept2007 069.jpg (39.3 KiB) Viewed 1976 times

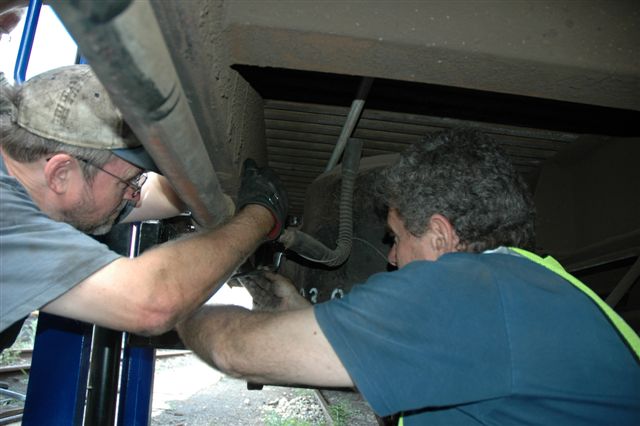

Loosening the bolts<br /><br />Photo by Nathan Berelowitz 29/09/07
Loosening the bolts

Photo by Nathan Berelowitz 29/09/07
family and trainstuffsept2007 067.jpg (48.86 KiB) Viewed 1976 times

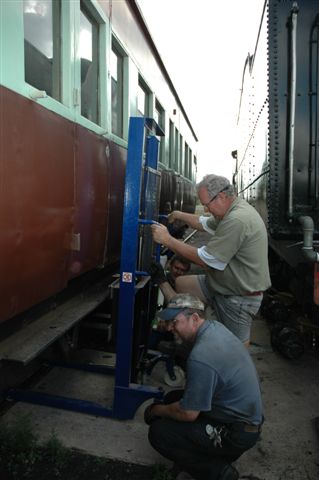

The tool<br /><br />Photo by Nathan Berelowitz 29/09/07
The tool

Photo by Nathan Berelowitz 29/09/07
family and trainstuffsept2007 009.jpg (34.54 KiB) Viewed 1976 times
Top
User avatar
John Ashworth
Site Admin
Posts: 23606
Joined: 24 Jan 2007, 14:38
Location: Nairobi, Kenya
Contact:
Contact John Ashworth

Post by John Ashworth »

And today we reassembled the vacuum cylinder and put it back onto coach 5919
Attachments

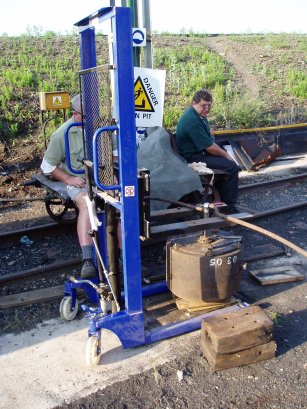

Tom and Gabor take a rest while the tool takes the strain<br /><br />Photo by John Ashworth 13/10/07
Tom and Gabor take a rest while the tool takes the strain

Photo by John Ashworth 13/10/07
tool oct07 p1010009s.jpg (60.64 KiB) Viewed 1926 times
Top
User avatar
John Ashworth
Site Admin
Posts: 23606
Joined: 24 Jan 2007, 14:38
Location: Nairobi, Kenya
Contact:
Contact John Ashworth

Post by John Ashworth »

However the magic tool works a lot better on flat concrete than it does on dirt and rails...
Attachments

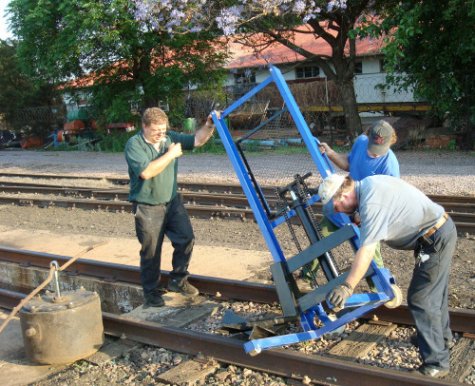

Gabor, Nathan and John manoeuvre the tool across the track, having taken off the vacuum cylinder (bottom left)<br /><br />Photo by Tom Macrery 13/10/07
Gabor, Nathan and John manoeuvre the tool across the track, having taken off the vacuum cylinder (bottom left)

Photo by Tom Macrery 13/10/07
tool 8s.jpg (62.03 KiB) Viewed 1897 times
